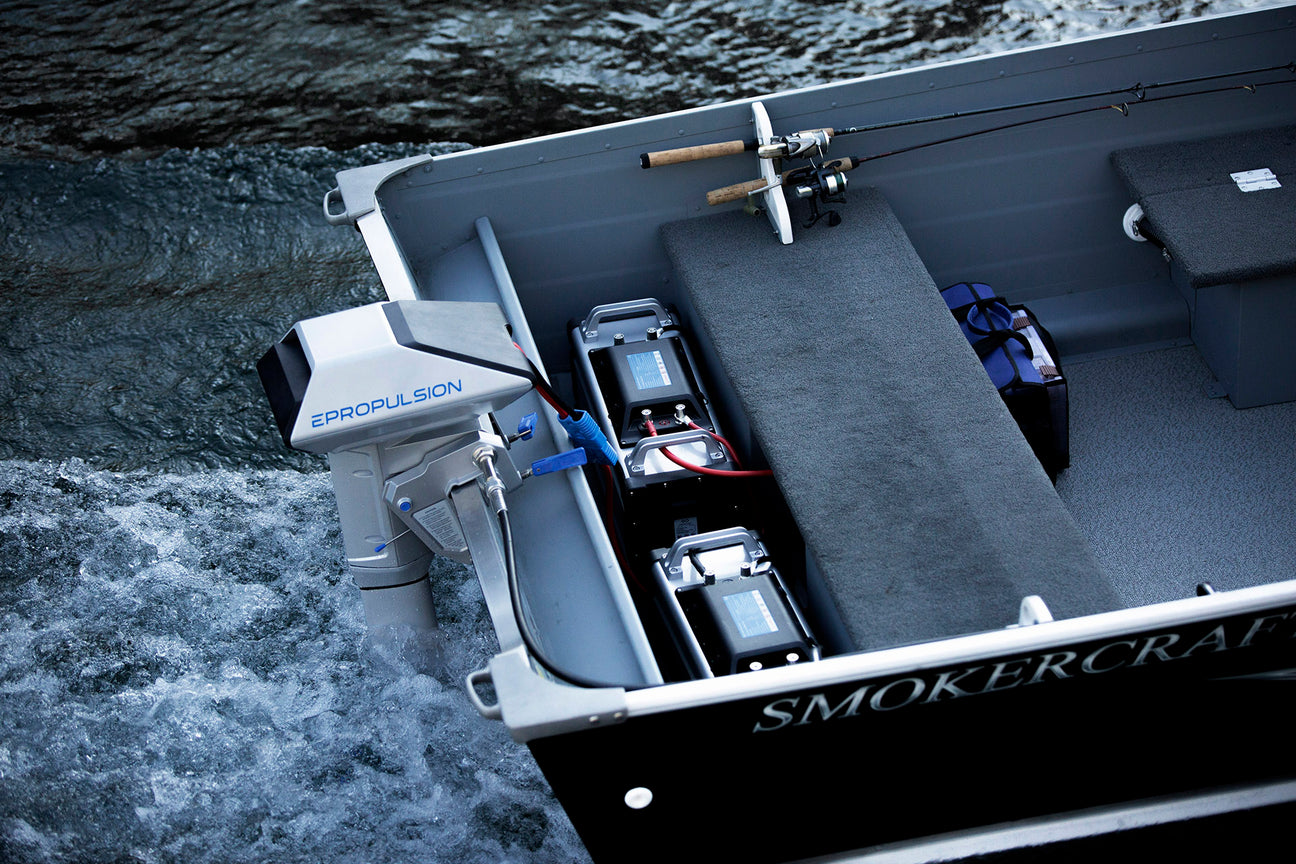

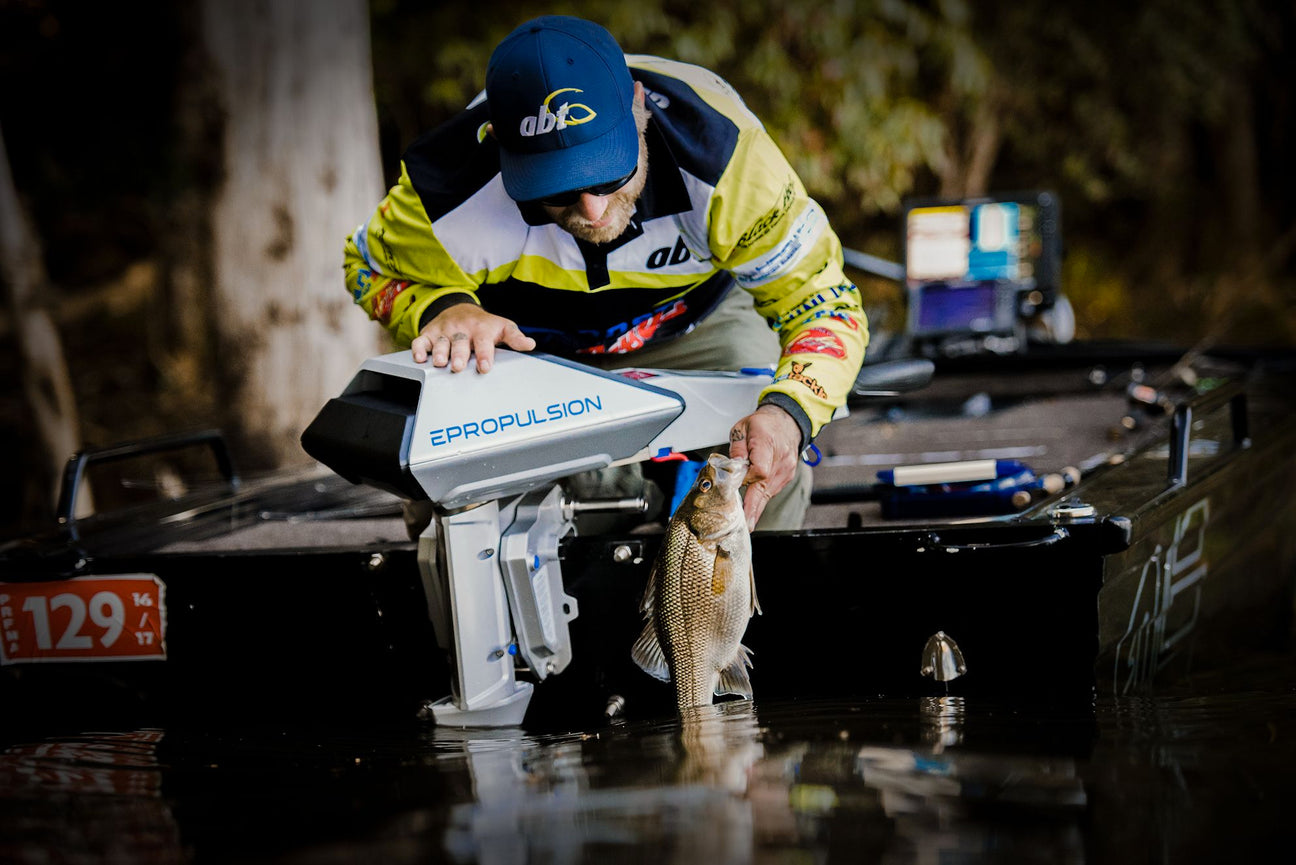

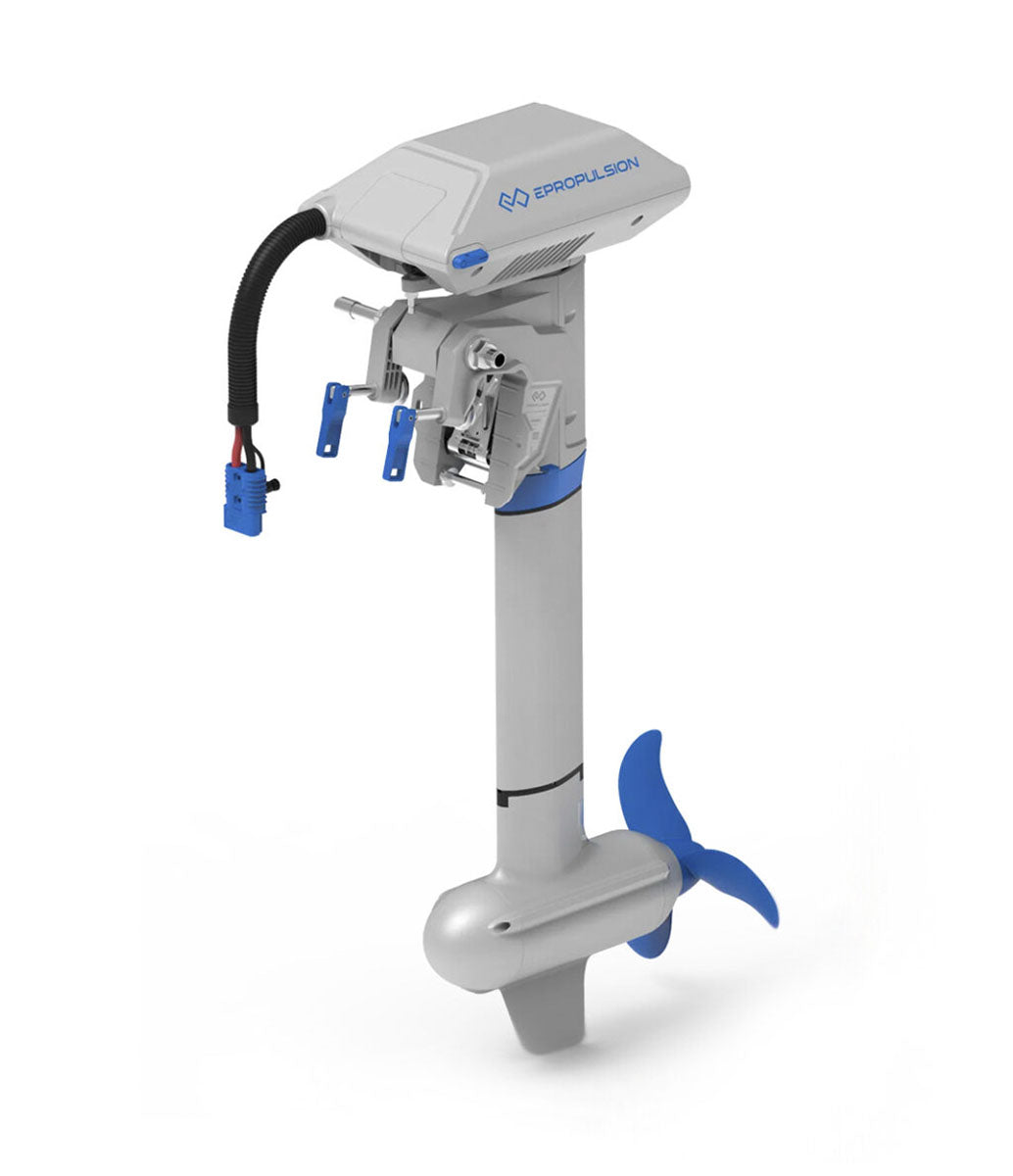

Electric Outboard Motor Navy Series Navy 6.0 Evo 6kW / 9.9HP

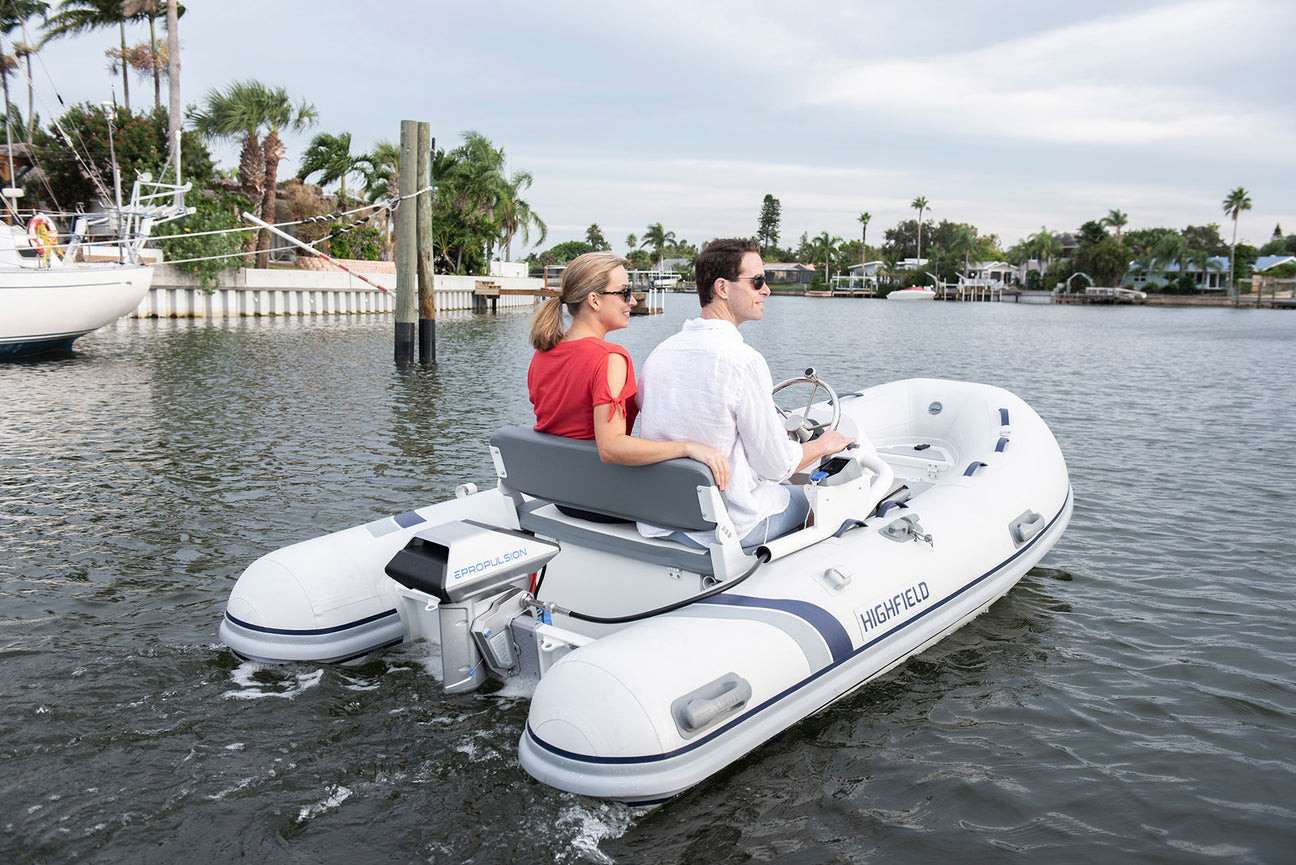

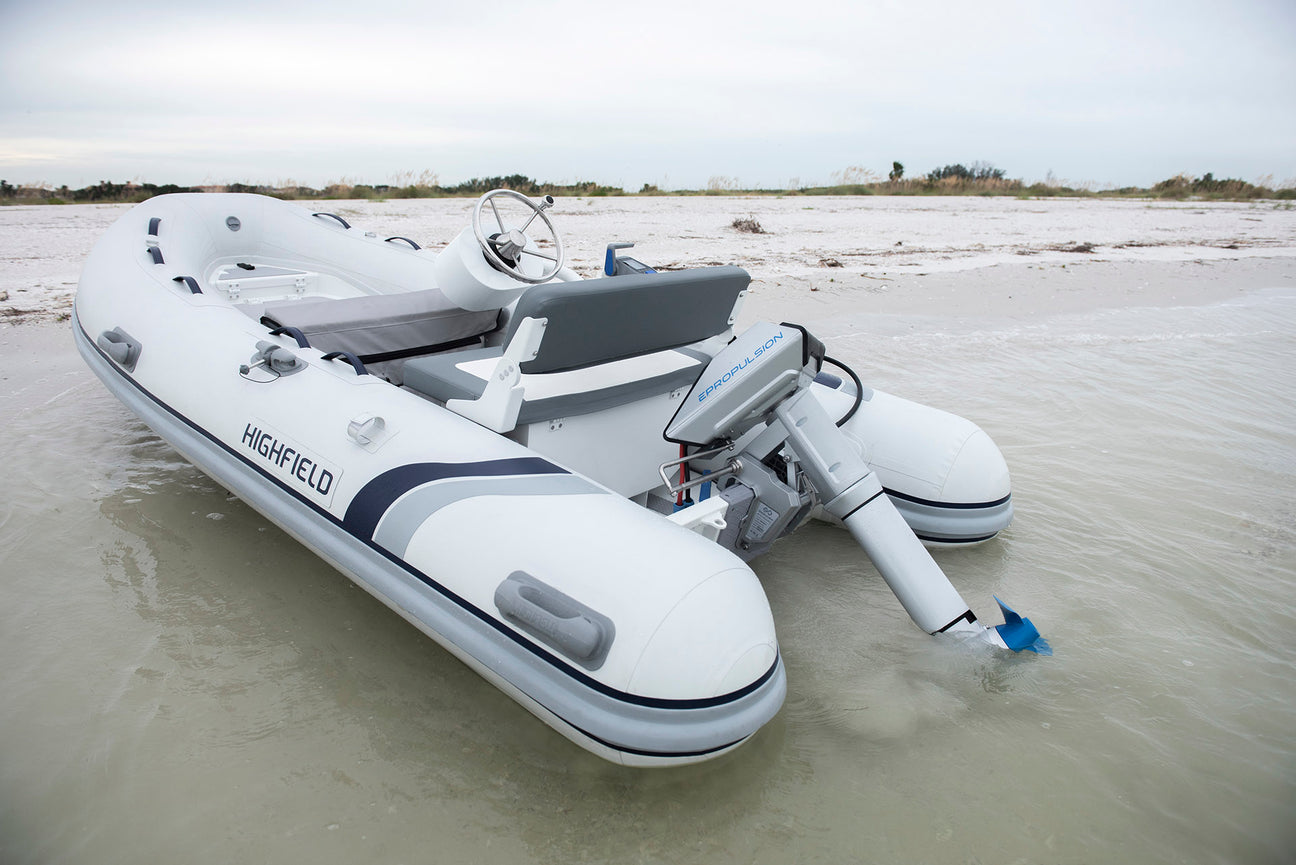

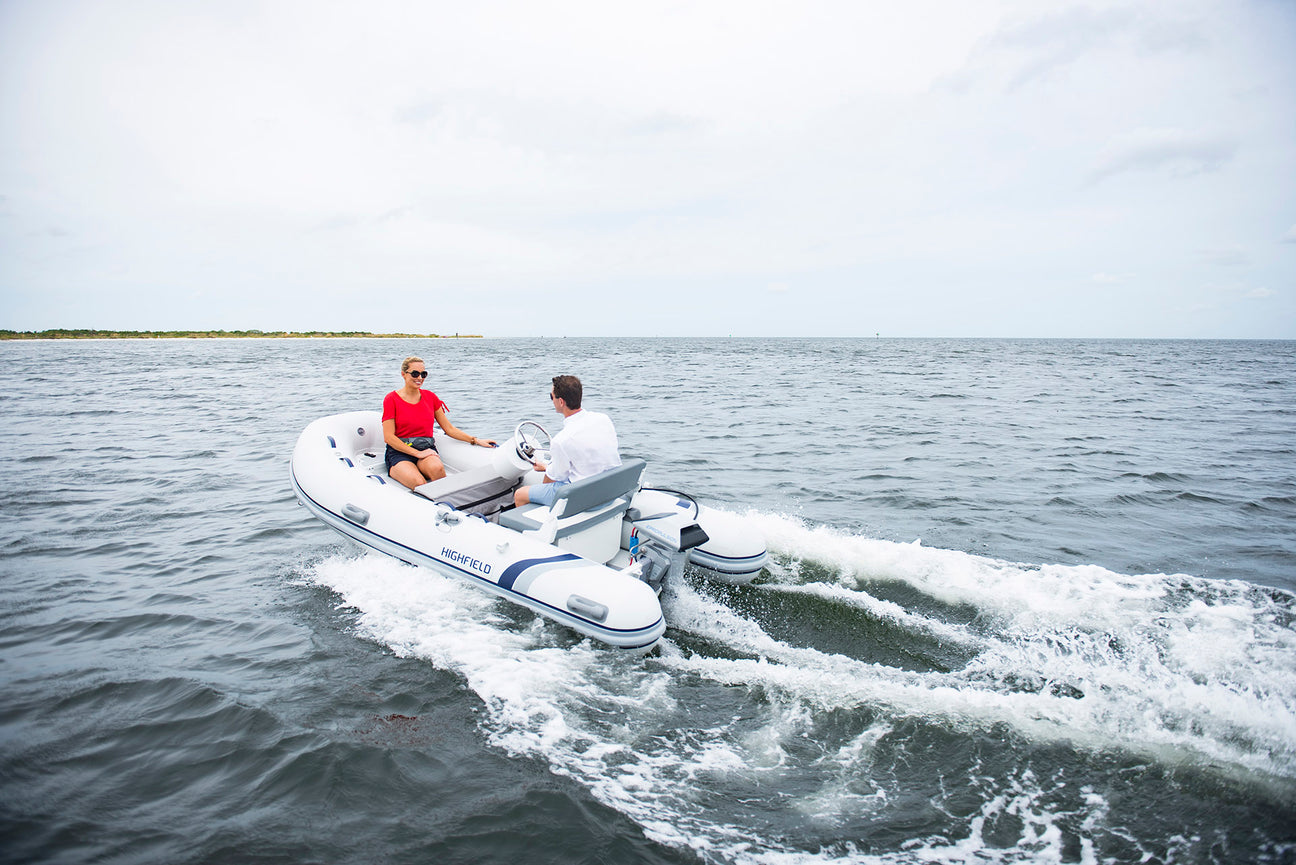

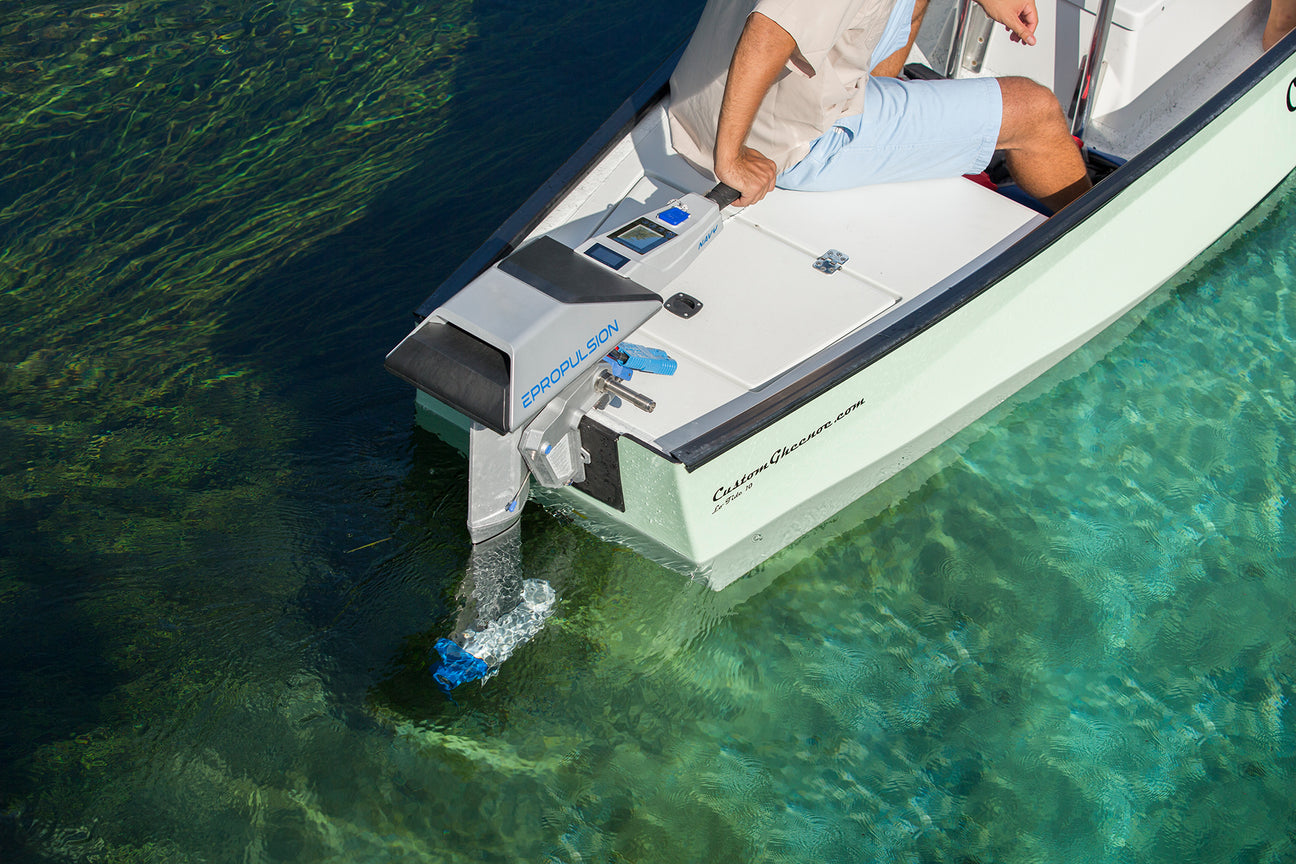

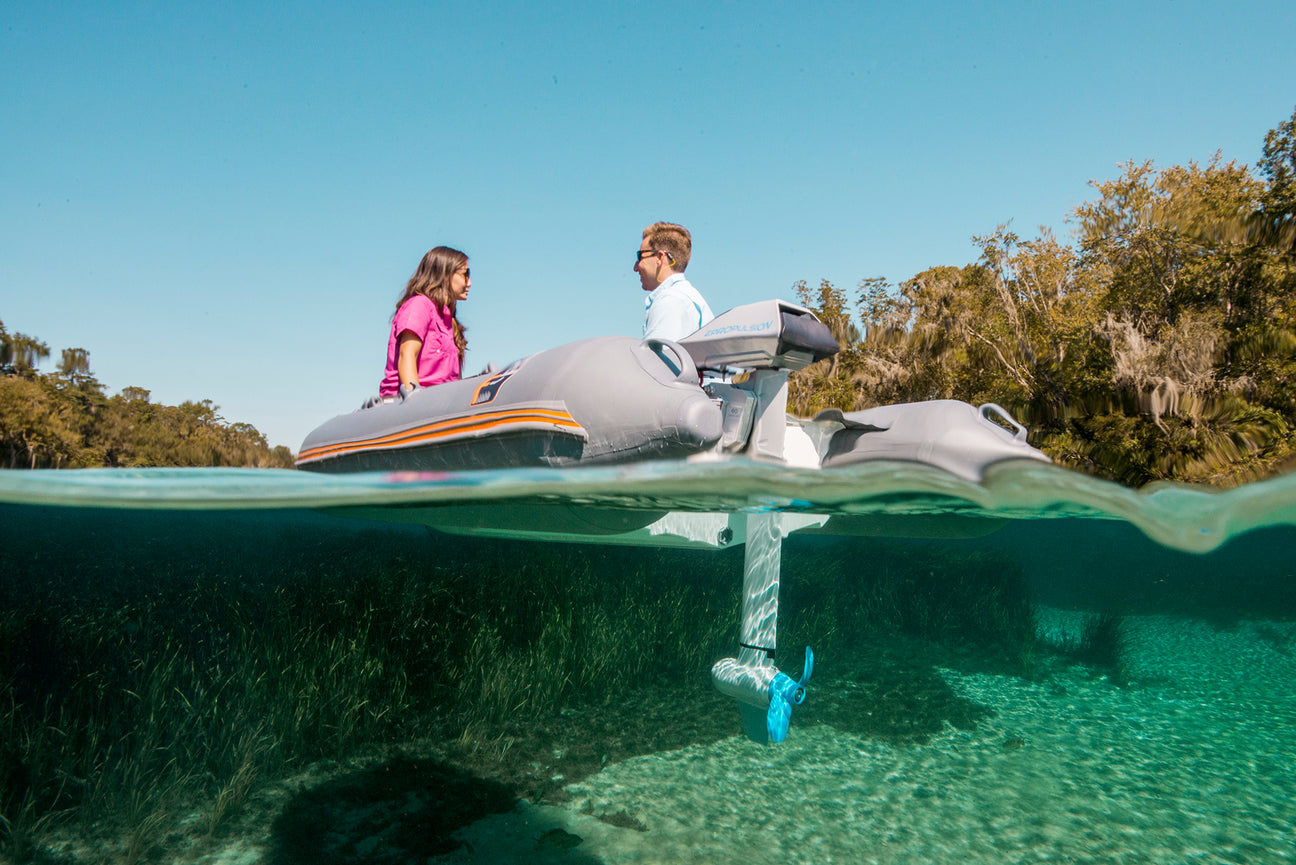

Navy Series is the backbone of ePropulsion electric outboard motors. It provides efficient and clean power for aluminum fishing boats, dinghies, daysailers and cruising sailboats, suitable for saltwater and freshwater. Thanks to the direct-drive technology, the Navy electric outboard boat motor is quiet, maintenance-free, and reliable.Hydrogenerator Empowers Sailors
-
The hydrogeneration data is based on real tests with the anti-ventilation plate installed.
-
Navy 6.0 Evo is tested with a 12.6″ x 8.7″ three-blade aluminium propeller that you could order separately.
Specifications
Navy 3.0 Evo Navy 6.0 Evo Power 3 kW (6HP equivalent) 6 kW (9.9HP equivalent) Input voltage 39V – 60V 39 V – 60 V Recommended Battery ePropulsion E-Series Battery ePropulsion E-Series Battery Motor Weight* 24.3 kg / 53.6 lbs 36 kg / 79.4 lbs Propeller 10.2″ × 6.7″ 2-blade composite propeller 12.6″ × 10.8″ 3-blade composite propeller / 13.4″ × 8.5″ 3-blade composite propeller / 12.6″ × 8.7″ 3-blade aluminum propeller (optional) Trim / Tilt Angle 0°, 5°, 10°, 15° / 60° 0°, 5°, 10°, 15° / 60° Shaft Length Short, Long Short, Long Control Evo Tiller / Evo Top Mount Control / Evo Side Mount Control / Evo Dual Remote Control Evo Tiller / Evo Top Mount Control / Evo Side Mount Control / Evo Dual Remote Control Hydrogeneration Yes Yes Motor Brushless DC motor Brushless DC motor Direct Drive Yes Yes Maintenance-Free Yes Yes * The weight is measured with the short shaft version.
Incredible Range
Navy Series electric outboard motors are impressively efficient to go further and faster.Navy 3.0Power (Watt) Speed (mph / kph) Running Time (hh:mm) Range (mile / km) 300 3.7 / 6 13:20 49.3 / 79.3 550 4.7 / 7.5 7:25 35 / 56.3 1000 5.3 / 8.6 4:00 21.2 / 34.1 1500 6 / 9.7 2:40 16 / 25.7 2000 6.3 / 10.2 2:00 12.6 / 20.4 2500 8 / 12.8 1:35 12.7 / 20.5 3000 10.2 / 16.4 1:20 13.6 / 21.9 Navy 6.0Power (Watt) Speed (mph / kph) Running Time (hh:mm) Range (mile / km) 500 4 / 6.5 18:00 72 / 116 1000 5 / 8 9:00 45 / 72 2000 6.7 / 10.8 4:30 30.2 / 48.6 3000 8 / 13 3:00 24 / 39 4000 11.5 / 18.5 2:15 25.9 / 41.7 5000 13.5 / 21.8 1:50 24.7 / 39.8 6000 15 / 24.3 1:30 22.5 / 36.5 * The performance data is based on a 12-foot aluminum boat with one person, powered by one Navy 3.0 Evo with one E80 battery and one Navy 6.0 Evo with one E175 battery, in calm lake water.
Four Evo Controls
Digital Display
Offers real-time monitoring of the power, remaining runtime, battery level, voltage, etc.
Electric Start
Press the button and you’re ready to go. Saves your trouble pulling the cord to start.
Magnetic Kill Switch
Works as an emergency stop key for ePropulsion electric outboards. Keeps you safe on the boat.
Smooth Throttle Changing
Designed with excellent throttle response and clear throttle hand feel.
Electric Outboard Motor Epropulsion Navy 6.0 Evo 6kW / 9.9HP
