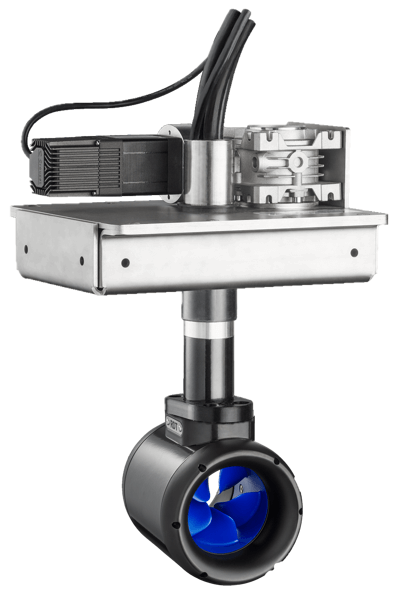

Electric Steerable POD Motor RIM Drive 2.5 Description:
The Steerable POD, a pinnacle of innovation with a maximum input power of 2.5kW and a 24V nominal voltage, ensuring optimal efficiency surpassing 90%. Experience unparalleled acceleration compared to conventional alternatives, coupled with zero-turn steering. The steerable POD is rotatable up to 320 degrees with 160 degrees both ways for ultimate manoeuvrability. All combined in a lightweight compact design.
Enjoy diverse control options with joystick, steering wheel, or CAN control. Adding to its resilience, all our POD motors are fully waterproof with an IP68 rating, achieved by completely casting the motor not by using sealings. The design also minimizes risk of damage to the propeller, perfect performance in any environment
Mounting plates and sealing for our steerable POD motor are available in stainless steel (RVS) and fiberglass (GFK). In addition, an ECU is available. All drawings can be downloaded below in the ‘Downloads’ section.
- Nominal current: 120A
- Nominal voltage: 24V
- Weight: 21.5kg
- Propeller diameter: 86mm
- Outside diameter: 135mm
- Motor length: 150mm
- IP Class: IP68
- Static thrust: 24kg
- Salt water resistant: Yes
- Motor controller included: Yes
Steerable POD
|
Model |
Steerable POD |
|
Type |
2.5 |
|
Input voltage |
24 |
|
Nominal power |
2.5 |
|
Maximum RPM |
3.200 |
|
Maximum temp. |
85°C |
|
Temp. sensor |
PT1000 |
|
Maximum depth* |
5 meters |
Motor controller
|
Motor controller |
48V 250A |
|
Length mc |
160 mm |
|
Width mc |
200 mm |
|
Height mc |
72 mm |
|
Weight mc |
3.25 kg |
Warranty terms: two years for non-commercial use and one year for commercial use
